TD80-TRANS
$1,340.00
Pricing subject to change on all non-stock items

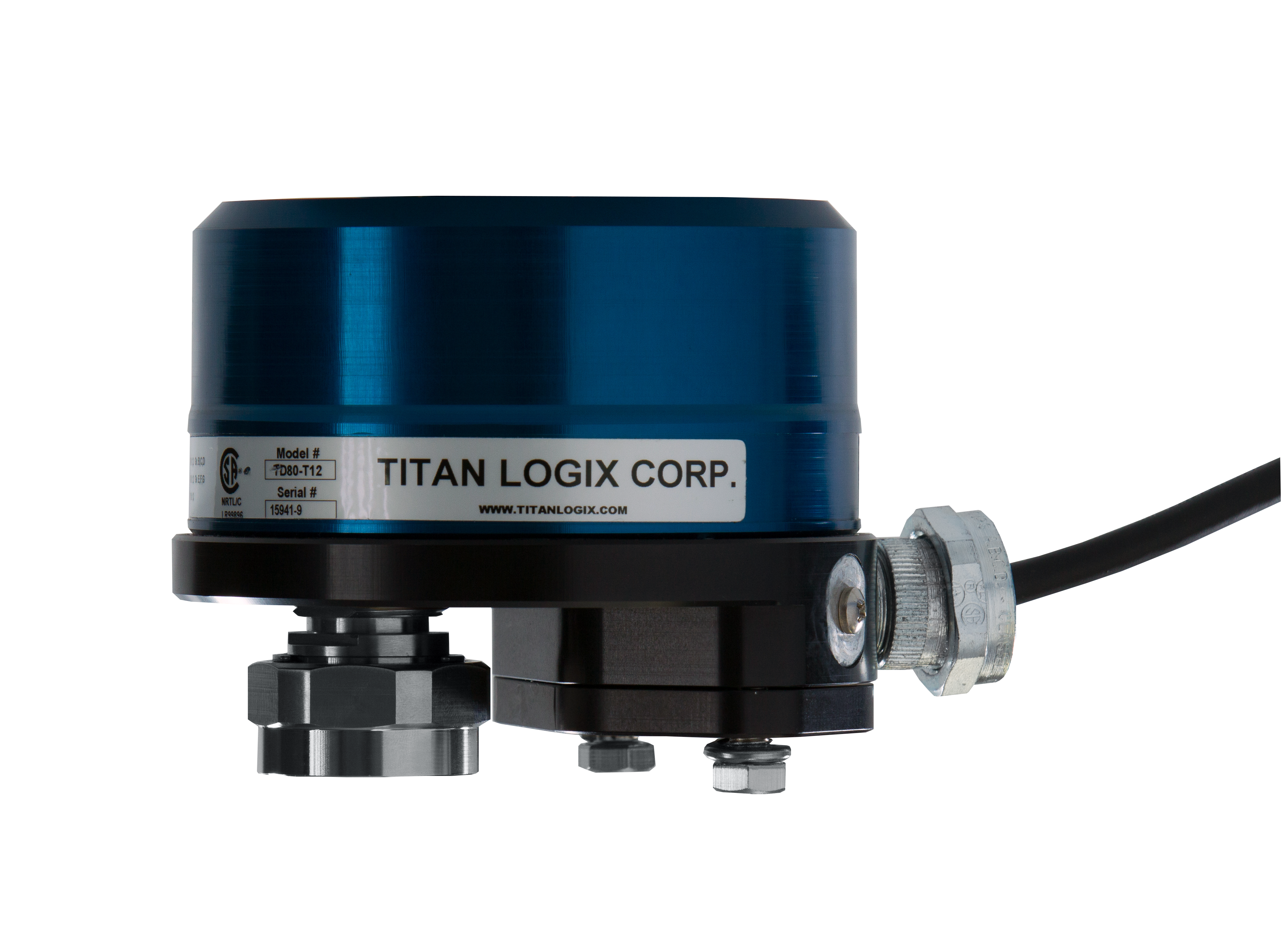

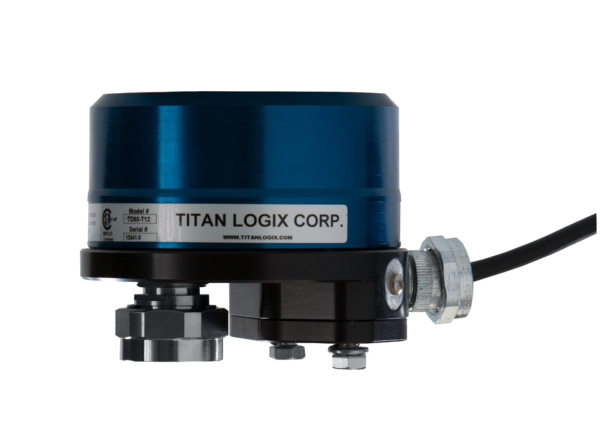

TD80 Transmitterr head
FEATURES
- Most rugged and long-lasting gauges in the industry
- No moving parts and maintenance-free
- Multiple levels of overfill prevention
- Easy programming and calibration
- Designed to withstand the most hostile environments (NEMA, Type 4, Class 1 Division 1)
- Multi-transmitter use with single display
- Field serviceable
- Optional 10-foot stainless steel Dual Rod or Hastelloy Probe
Tough protection from the elements
With NEMA Type 4 certification, this technology is protected from the damaging effects of water (rain, sleet, snow, splashing water, and hose-directed water).
The TD Series Transmitters are Class 1 Division 1 certified for the harsh and hazardous conditions found on trucks hauling crude oil, fuels, chemicals, and other fluids.
TD80 Specifications
- Power: 8 to 28V DC
- Current consumption: 80mA @ 12V DC
- Ambient temperature range: -40 F (-40 C) to 185 F (85 C)
- Environment: Hazardous area approvals
- Class I, Div. 1 (with explosion-proof seal)
- Class I, Div. 2 (without explosion-proof seal)
- Weatherproof: CSA Type 4
