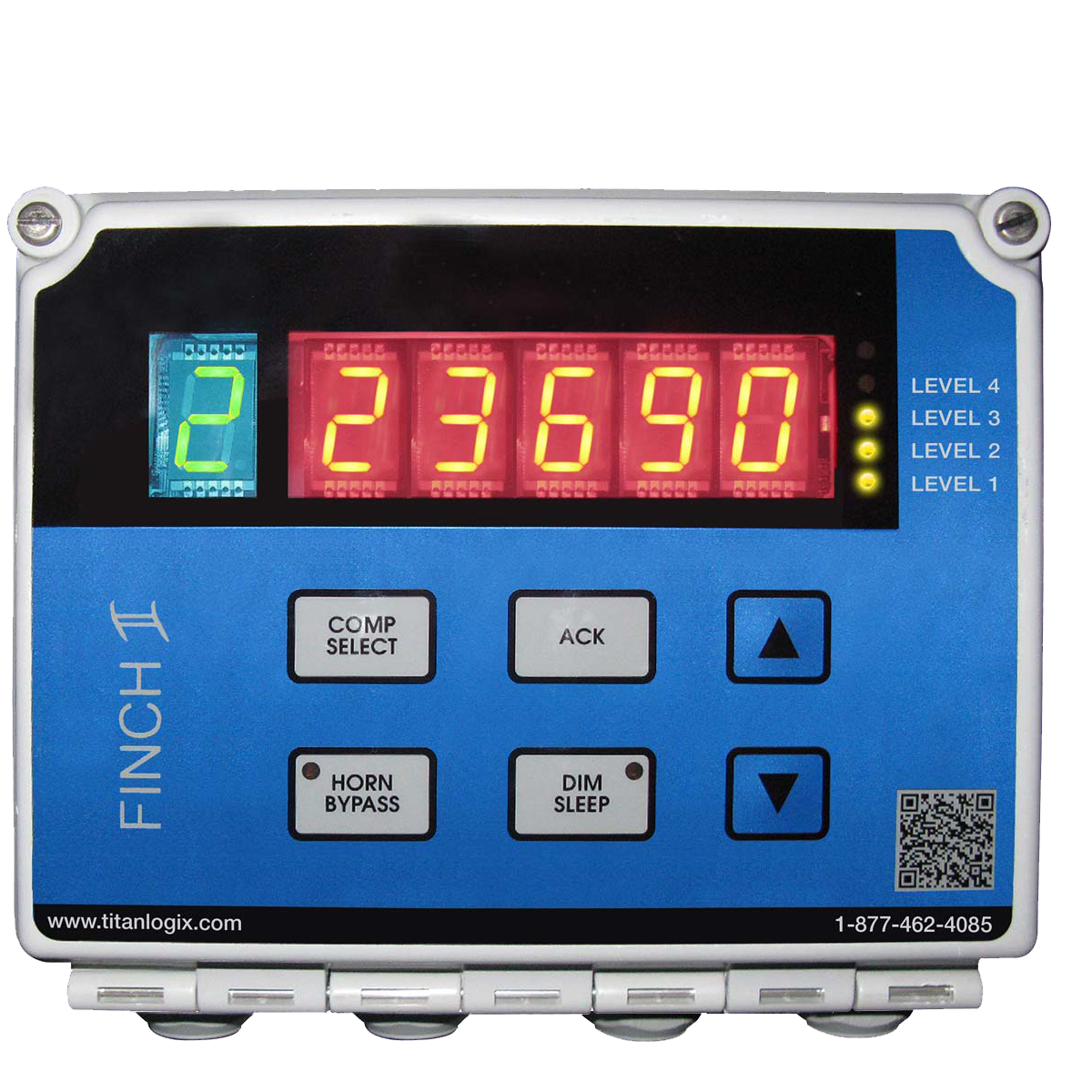

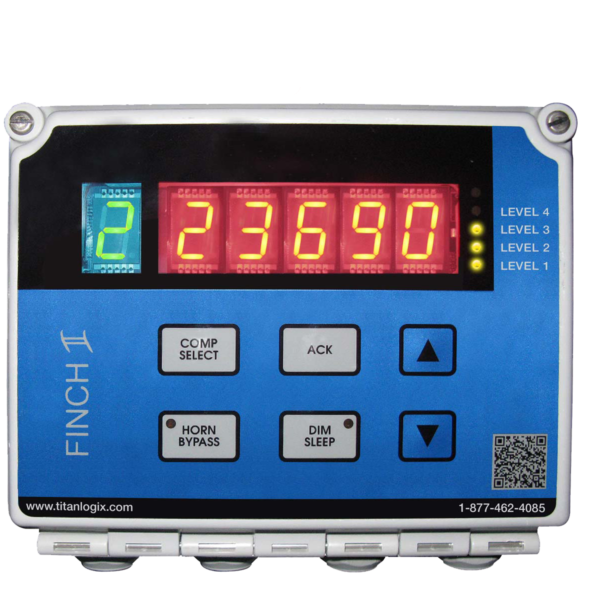

FINCH II
$1,347.50
1 in stock
TD80 External Display
FEATURES
- Displays tank level for one or two compartments.
- NEMA 4 Weatherproof enclosure
- Allows the control of pumps, PTOs, valves, engine shutdown systems, and external audible and visual alarms
- Multiple options for fail-safe overfill prevention
- Weatherproof display for exterior installations
- CSA-approved for hazardous areas, Class 1, Div. II
- Compatibility with existing systems allows for cost-effective fleet standardization
Specifications
- Power: 8-30V DC
- Current Consumption: 300mA at 12V DC
- Relay ratings: 3.3A maximum on any individual relay, and 6.6A maximum across all 4 relays
- Operating temperature range: -40°F (-40°C) to 149°F (65°C)
- Communications: SV Bus and RS-232 for communication with the Titan Gateway
- Hazardous area approvals: CSA Class 1, Div. 2, Groups C & D, T3
- Enclosure: flame-retardant FRP and NEMA 4X
- Dimensions:
- Width: 8.5” (215.90 mm)
- Depth: 4.29” (108.97 mm)
- Height: 7.47” (189.74 mm)
