5500G
$1,627.92
2 in stock

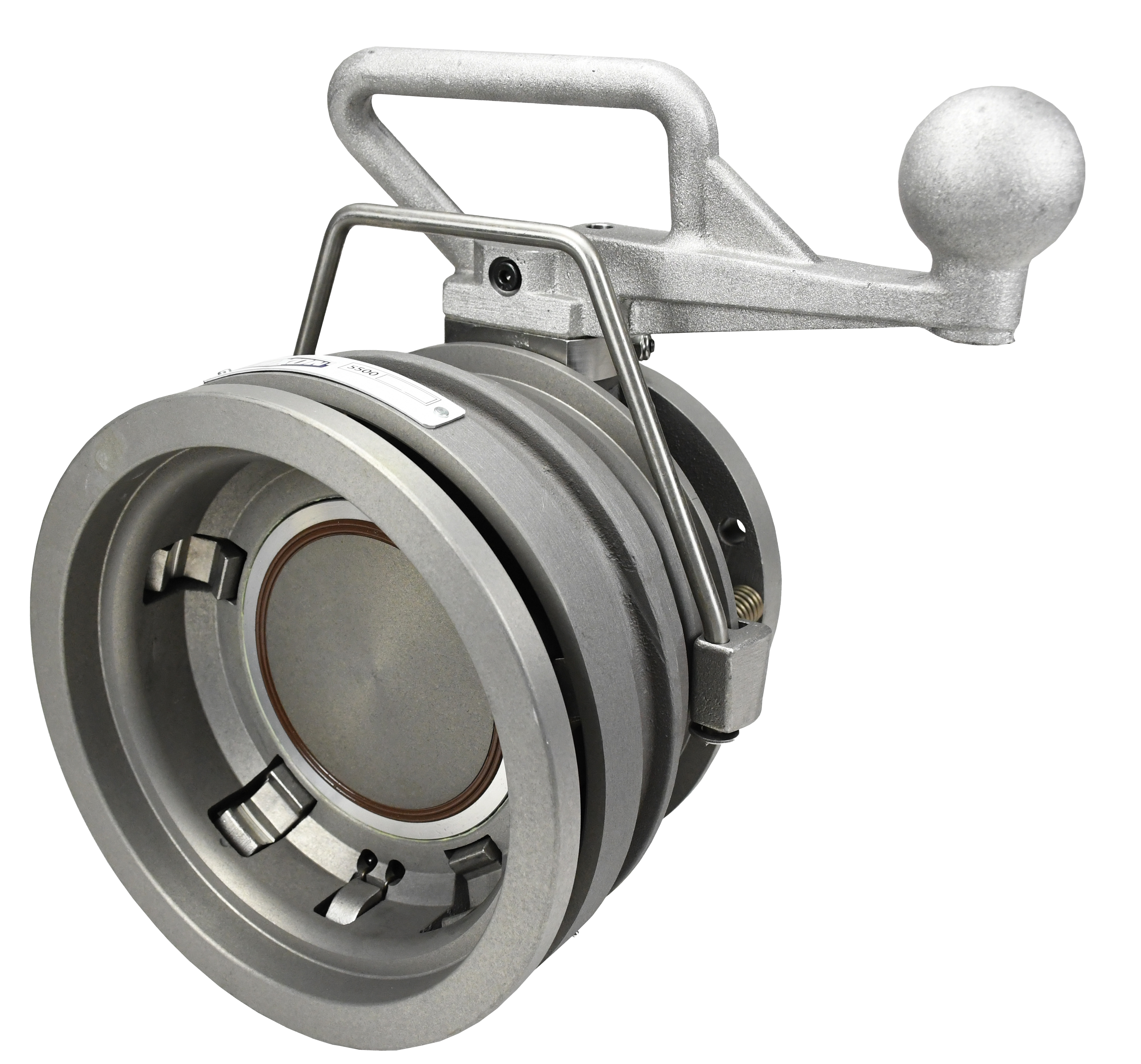

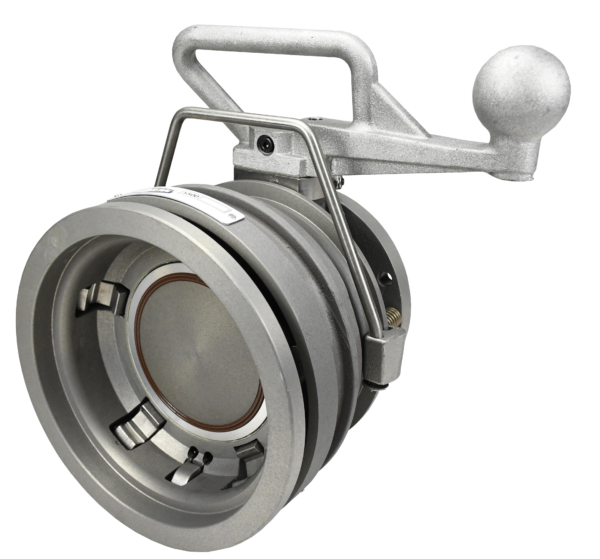

API Rack coupler FKM-GFLT
Applications
Combined with API adapters, these couplers are suitable for rail car and tank truck loading or unloading
Construction
- Body: 356 T6 aluminum anodized hard-coat
- Cam: stainless steel
- Poppet: 356T6 aluminum annodized hard-coat
- Seals: FKM-GFLT standard; Baylast, EPDM, Fluoroelastomer, FKM-B, HiFluor®
- Link, shaft, pin, crank: hardened 17-4PH stainless steel
- Handle: aluminum, stainless steel
Description
5500 API rack coupler FKM-GFLT aluminum handle
Features
- Locking five-cam design provides easy alignment and tight connection
- Modular design allows various face seal combinations to be compatible with different alternative fuels, performance levels, and applications
- Replaceable nose seal can be changed without removing coupler from loading arm
- Fully interlocked collar creates a secure connection
- 4” TTMA inlet mounting flange connection
- Ball-end handle for easy and comfortable operation
- No special tools needed for maintenance
Warehouse Inventory
Warehouse | Count |
---|---|
Wood River, IL | 0 |
Converse, TX | 0 |
Birmingham, AL | 1 |
Atlanta, GA | 0 |
Tampa, FL | 0 |
Des Moines, IA | 0 |
Billings, MT | 1 |
Commerce City, CO | 0 |
