5500B
$1,485.06
5 in stock

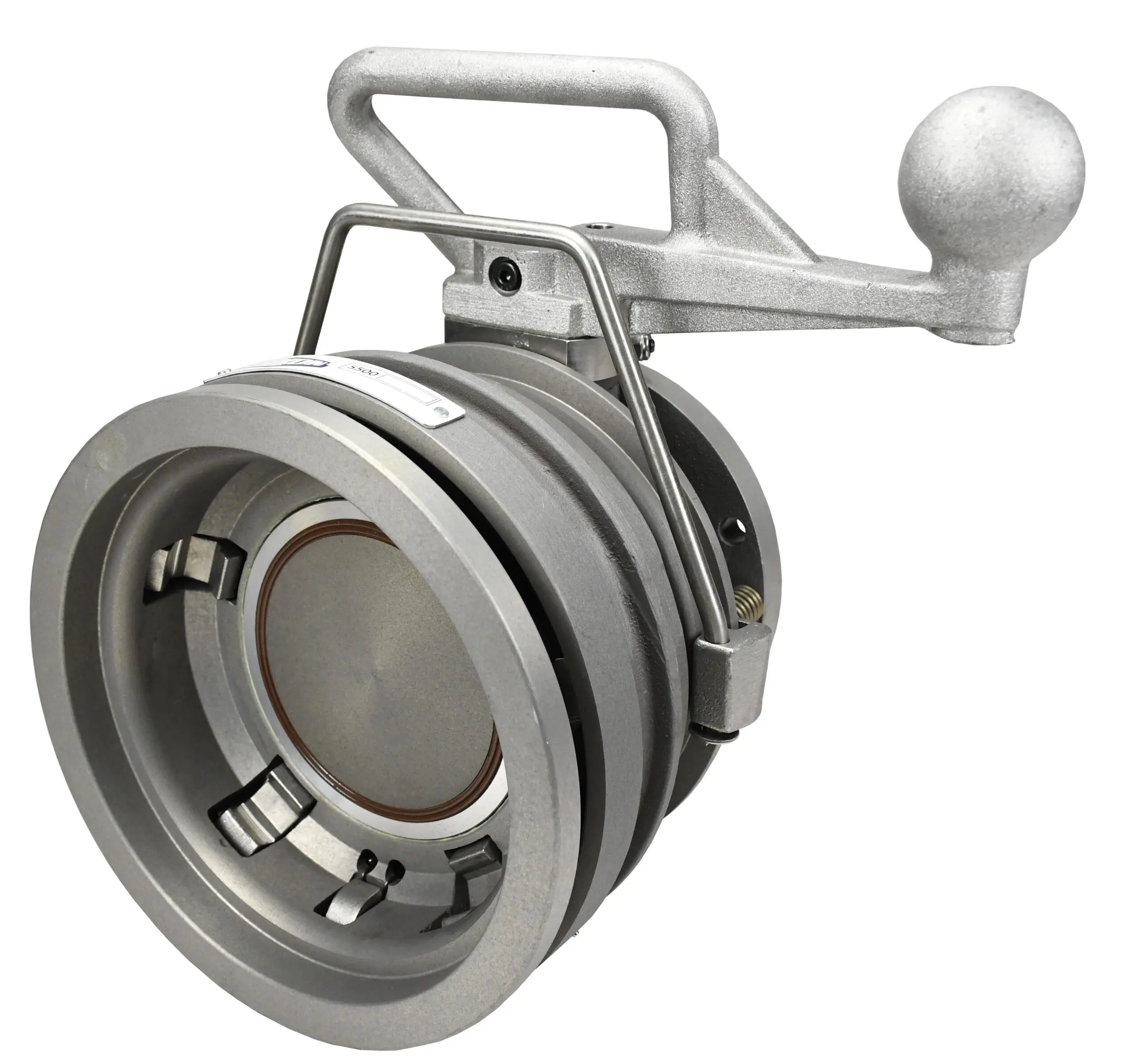

4″ API Load Coupler FKM-B Seals with Aluminum Hand
Applications
- Combined with API adapters, these couplers are suitable for rail car and tank truck loading or unloading
Specifications
- Flow rate: 600 GPM at 3 PSI pressure drop; maximum flow rate: 1,000 GPM
- Fully compliant with API RP 1004:2003 specifications
- Seal operating temperature:
- • Baylast:-35°F to 212°F (-37°C to 100°C)
- • EPDM:-20°F to 250°F (-28°C to 121°C)
- • FKM-B:-10°F to 400°F (-23°C to 204°C)
- • FKM-GFLT:-30°F to 400°F (-34°C to 204°C)
- • Fluorosilicone:-50°F to 350°F (-45°C to 176°C)
- • HiFluor:-15°F to 400°F (-26°C to 204°C)
Features
- Locking five-cam design provides easy alignment and tight connection
- Modular design allows various face seal combinations to be compatible with different alternative fuels, performance levels, and applications
- Replaceable nose seal can be changed without removing coupler from loading arm
- Fully interlocked collar creates a secure connection
- 4” TTMA inlet mounting flange connection
- Ball-end handle for easy and comfortable operation
- No special tools needed for maintenance
-
Construction
- Body: 356 T6 aluminum anodized hard-coat
- Cam: stainless steel
- Poppet: 356T6 aluminum annodized hard-coat
- Seals: FKM-GFLT standard; Baylast, EPDM, Fluoroelastomer, FKM-B, HiFluor®
- Link, shaft, pin, crank: hardened 17-4PH stainless steel
- Handle: aluminum, stainless steel
Warehouse Inventory
| Warehouse | Count |
|---|---|
| Wood River, IL | 0 |
| Converse, TX | 3 |
| Birmingham, AL | 0 |
| Atlanta, GA | 0 |
| Tampa, FL | 0 |
| Des Moines, IA | 0 |
| Billings, MT | 0 |
| Commerce City, CO | 2 |
