519777.00

$3,086.83

E140 Compressor pto, drive flg, check relief 36psi

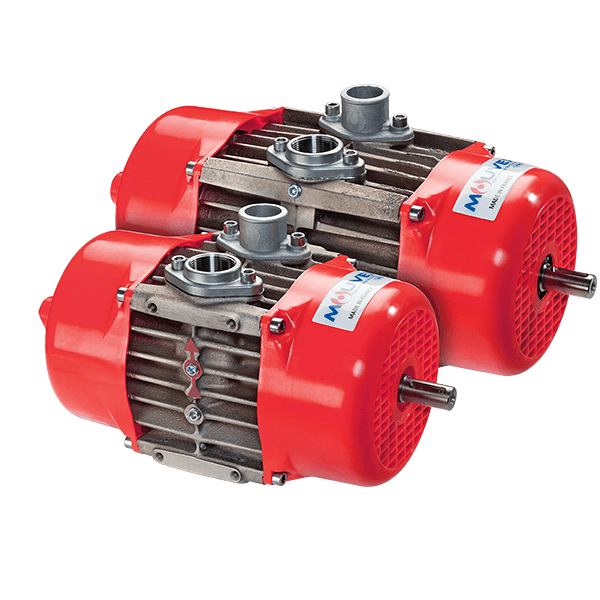

Mouvex® Enterprise Series Vane Compressors are proven workhorses for the oil-free, high-pressure discharge of fluids that can cause problems for cargo pumps. Constructed from corrosion-resistant, hard-coated cast iron to withstand harsh environments and operating conditions, these compressors have been engineered to address containment concerns, purity standards and the evacuation of residual product.

Performance

  • Tough liquid transport partner
  • Compact size
  • Constructed of corrosion-resistant, hard-coated cast iron to withstand harsh environmental and operating conditions
  • Address containment concerns purity standards and evacuation of residual product
  • Easy disassembly and reassembly
  • The unique blade inspection port offers easy inspection without removing the compressor from service (European Patent 0.083.481)
  • Innovative naming system to help identify the compressor flow rate:
    • E106 > E140 (140 m3h – 82 CMF)
    • E156 > E170 (170 m3h – 100 CMF)
  • Orange color and Mouvex label for easy identification
  • Stainless-steel discharge flange (used on the compressor and check relief valve)

Options

  • Upgraded suction hose that integrates new ends (two meters long) offering numerous advantages:
    • Ultra resistant material; very difficult to perforate
    • Adjustable to multiple configurations
    • Ends screwed and secured by a heat shrinkable sleeve preventing waterproof deft
    • Easy disassembly and assembly
  • Inlet air filter kit
  • Discharge pressure check/relief valve
  • PTO drive flange
  • Hydraulic motor drive adapter
  • Hydraulic drive cooler

Mouvex Enterprise Spec Sheet

Warehouse Inventory

Warehouse Count
Wood River, IL4
Converse, TX0
Birmingham, AL0
Atlanta, GA0
Tampa, FL0
Des Moines, IA8
Billings, MT0
Commerce City, CO0
